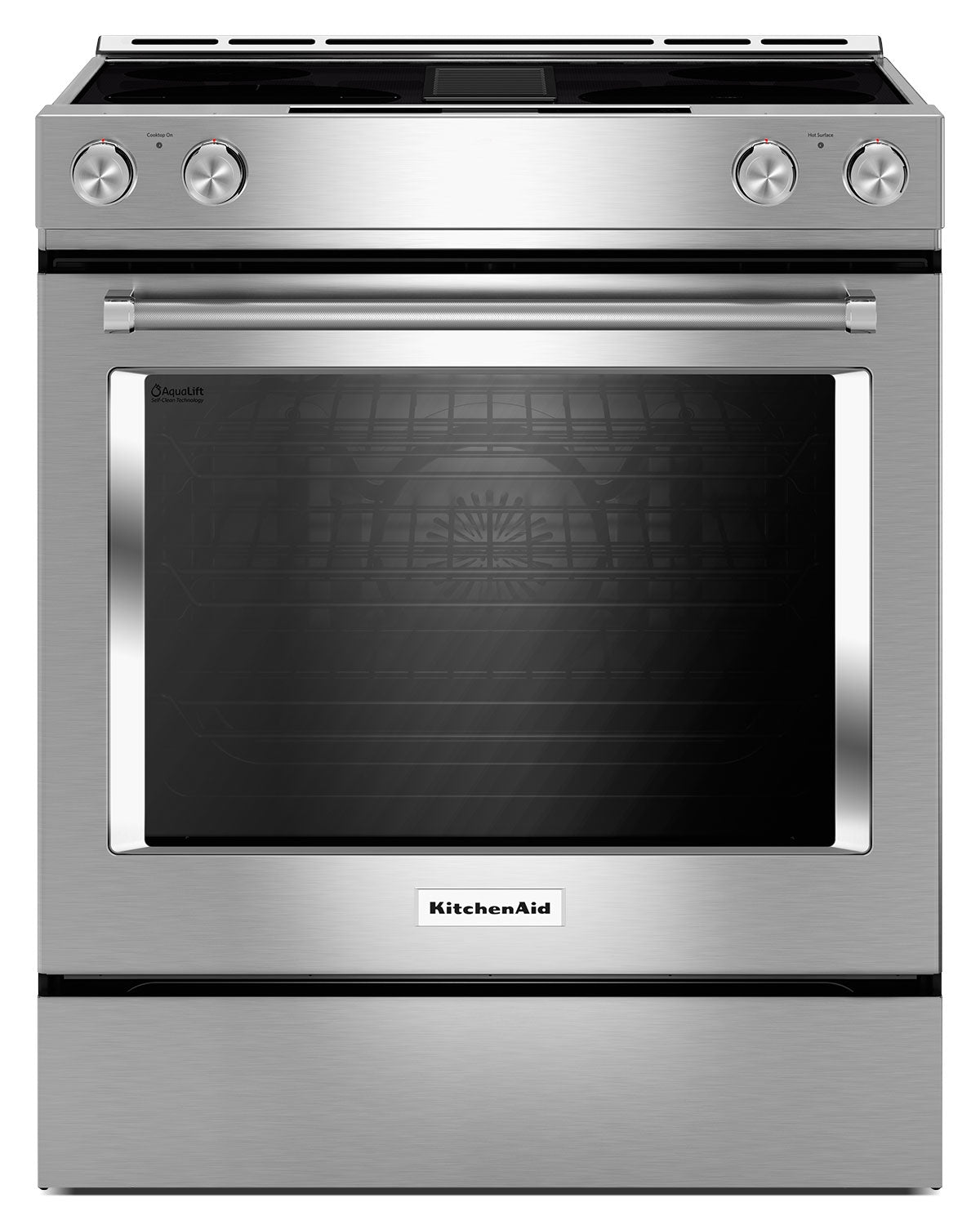

Cook with ease on this KitchenAid front-control downdraft electric range. With an integrated ventilation system, you don't need a separate hood to remove smoke, grease and odours from your kitchen. Achieve amazing cooking results thanks to Even-Heat™ convection, which can be further enhanced by adding additional moisture to the oven through the steam rack. Plus with four cooking elements, including one double cooking zone, you'll have no shortage of sautéing space.
Width: 29.88" (75.9 cm)Height: 36" (91.4 cm)Depth: 26.37" (67.0 cm)
Width: 31.5" (80.0 cm)Height: 43.5" (110.5 cm)Depth: 30.5" (77.5 cm)
235.00 lbs (106.6 kg)
- Even-Heat True Convection
- Steam Rack
- Large Capacity
- Four Cooking Elements

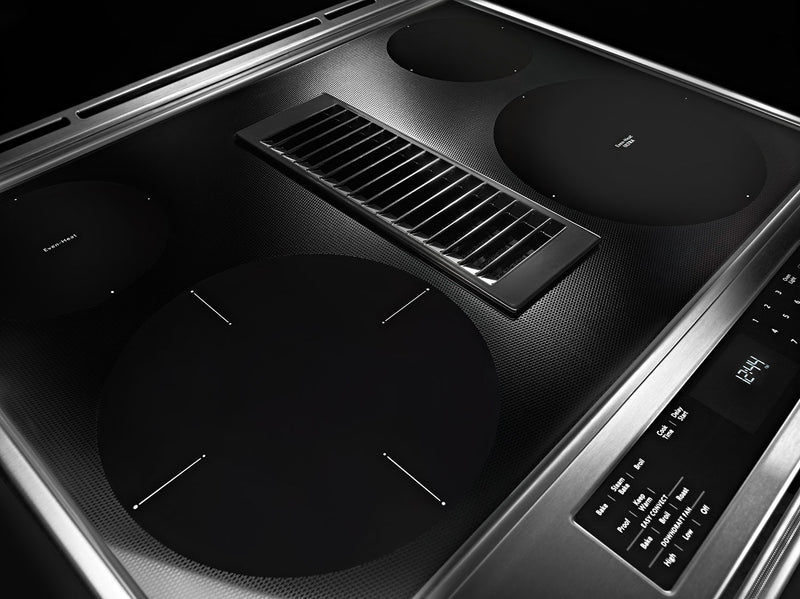

The ventilation system is integrated right into the range so a separate hood is not needed. Smoke and odours can be removed and taken outside or air can be filtered and recirculated inside. A duct-free kit can be purchased separately.
Even-Heat True Convection
The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Enhance cooking results by providing additional moisture to the inside of the oven.
This electric slide-in range provides a large, 6.4 cubic foot cooking capacity to easily handle multiple dishes at once.

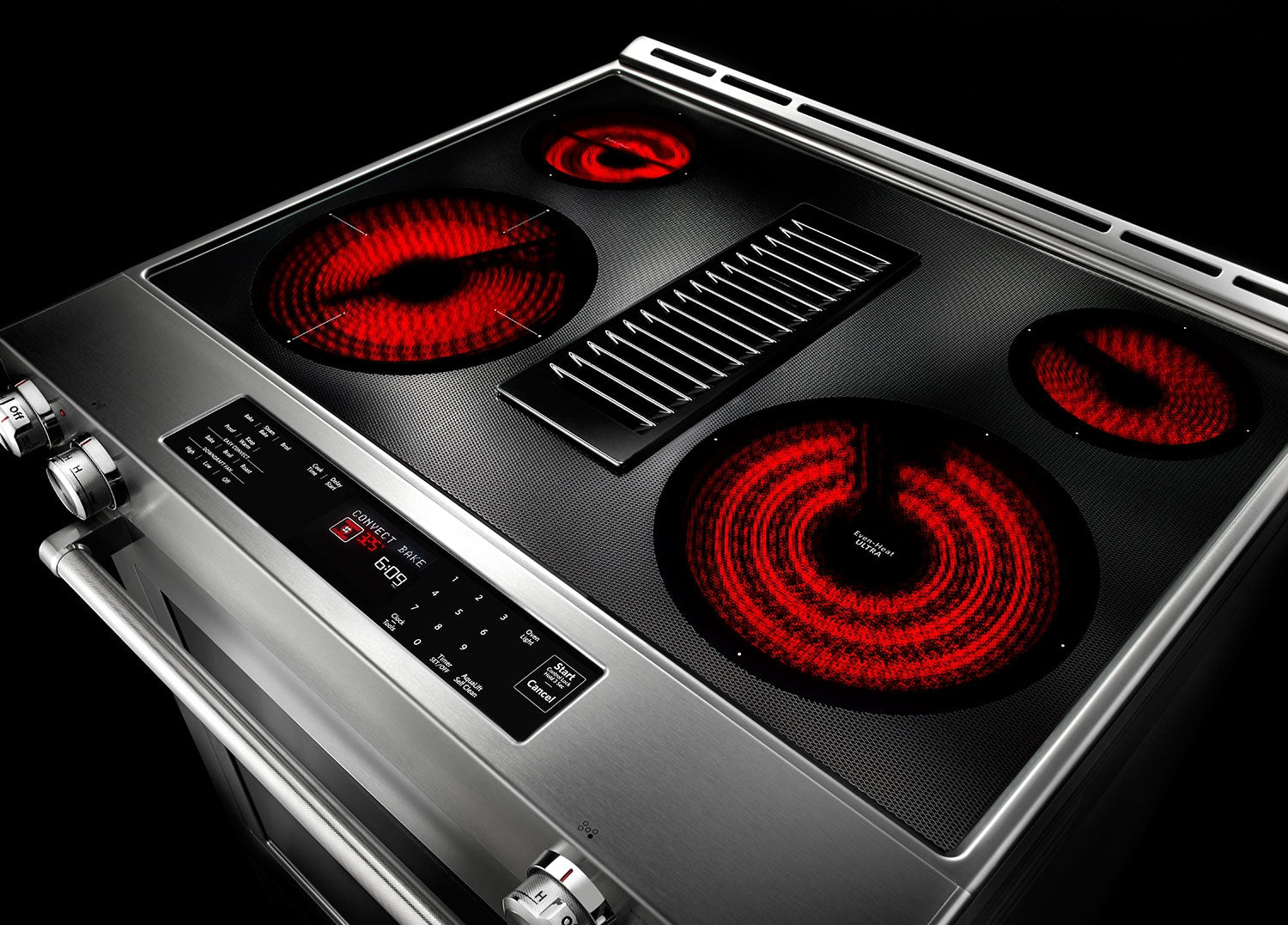

Four Cooking Elements
Four independent cooking surfaces allow you to do more on your range. This cooktop features a double cooking zone of six and 10 inches, one 10-inch zone and two six-inch cooking zones.
Full Features and Specifications
- Cooktop Element Style: Radiant
- Left Rear Element-Burner Type: Radiant Hyper
- Right Front Element-Burner Power: 3,200 W
- Right Front Element-Burner: Size 10"
- Right Front Element-Burner Type: Radiant Hyper
- Right Rear Element-Burner Power: 1,200 W
- Right Rear Element-Burner Size: 6"
- Right Rear Element-Burner Type: Radiant Single
- Cooktop Surface Colour: Black
- Cooktop Surface Material: Ceramic Glass
- Number of Cooking Element-Burners: 4
- Left Front Element-Burner Power: 3,000 W
- Left Front Element-Burner Size: 12"/6"
- Left Front Element-Burner Type: Radiant Dual
- Left Rear Element-Burner Power: 1,300 W
- Left Rear Element-Burner Size: 6"
- Door Type: Metal & Glass
- Handle Material: Metal
- Handle Type: Stainless Steel Towel Bar Handles
- Selections: Bake, Broil, Cancel/Off, Clock, Cook Time, Delay Start, Keep Warm Setting, Proofing, Steam Bake, Timer
- UL: Yes
- Star K Compliant: Sabbath Mode
Configuration and Overview:
- Fuel Type: Electric
- Range Type: Slide-In
- Size: 30"
- Capacity: 6.4 Cu. Ft.
- Automatic Convection Conversion Temperature Adjust: Yes
- Heating Element On Indicator Light: Yes
- Hot Surface Indicator Light: Yes
- Power On Indicator Light: Yes
- Bake Element Power: 3,600 W
- Broiler Element Power: 4,000 W
- Broiler Location: Top of Oven
- Convection Element Power: 3,200 W
- Convection Element Type Single-Fan
- Convection Functions: Bake, Broil, Roast
- Hidden Bake Element: Yes
- Light Type: Incandescent
- Number of Oven Lights: 2
- Number of Oven Racks: 3
- Number of Rack Guides: 7
- Oven Rack Type: 1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack
- Self-Cleaning: AquaLift® Self Clean
