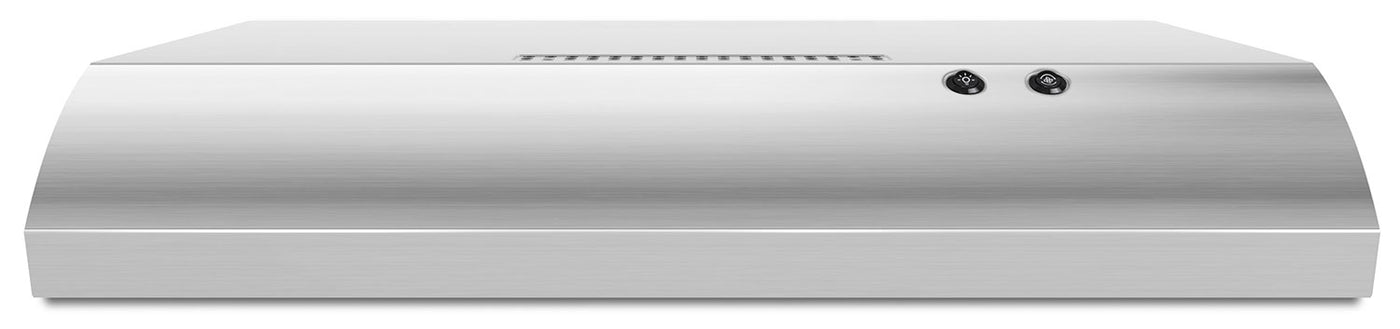

Product Description
Dimensions
Width: 30" (76.2 cm)Height: 6" (15.2 cm)Depth: 22.25" (56.5 cm)
Shipping Dimensions
Width: 10.5" (26.7 cm)Height: 28" (71.1 cm)Depth: 34.8" (88.4 cm)
Weight
36.00 lbs (16.3 kg))
Key Features:
- FIT System
- Economy Hood Sound Levels
- Hidden Vent
FIT System
The FIT system eliminates measuring, cutting and filler strips for a perfect fit every time. The FIT system ensures your hood will install seamlessly into your cabinet cutout in three easy steps. First, attach FIT brackets and prep the hood for electrical connection. Second, position the hood and attach to it to the cabinet. Third, complete the electrical connection to hood. Now the only thing left to do is use it. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
Economy Hood Sound Levels
Keep the hood from disturbing family time in the kitchen. This hood features the quiet operation of 4.5 sones at the hood's highest speed – with two fan speeds and a recirculation option.
Hidden Vent
This sleek and stylish hidden vent matches almost every modern or traditional kitchen. The design moves the ventilation out of sight to create a seamless look and a surface that's super easy to clean.
Configuration and Overview:
- Hood Type: Under-the-Cabinet
- Venting Type: Exterior or Recirculating
- Fan CFM: 190
- Amps: 15
- Hz: 60
- Volts: 120
- Star K Compliant: Kosher Consumer Friendly
Controls:
- Number of Fan Speeds: 2
- Task Light: Incandescent
