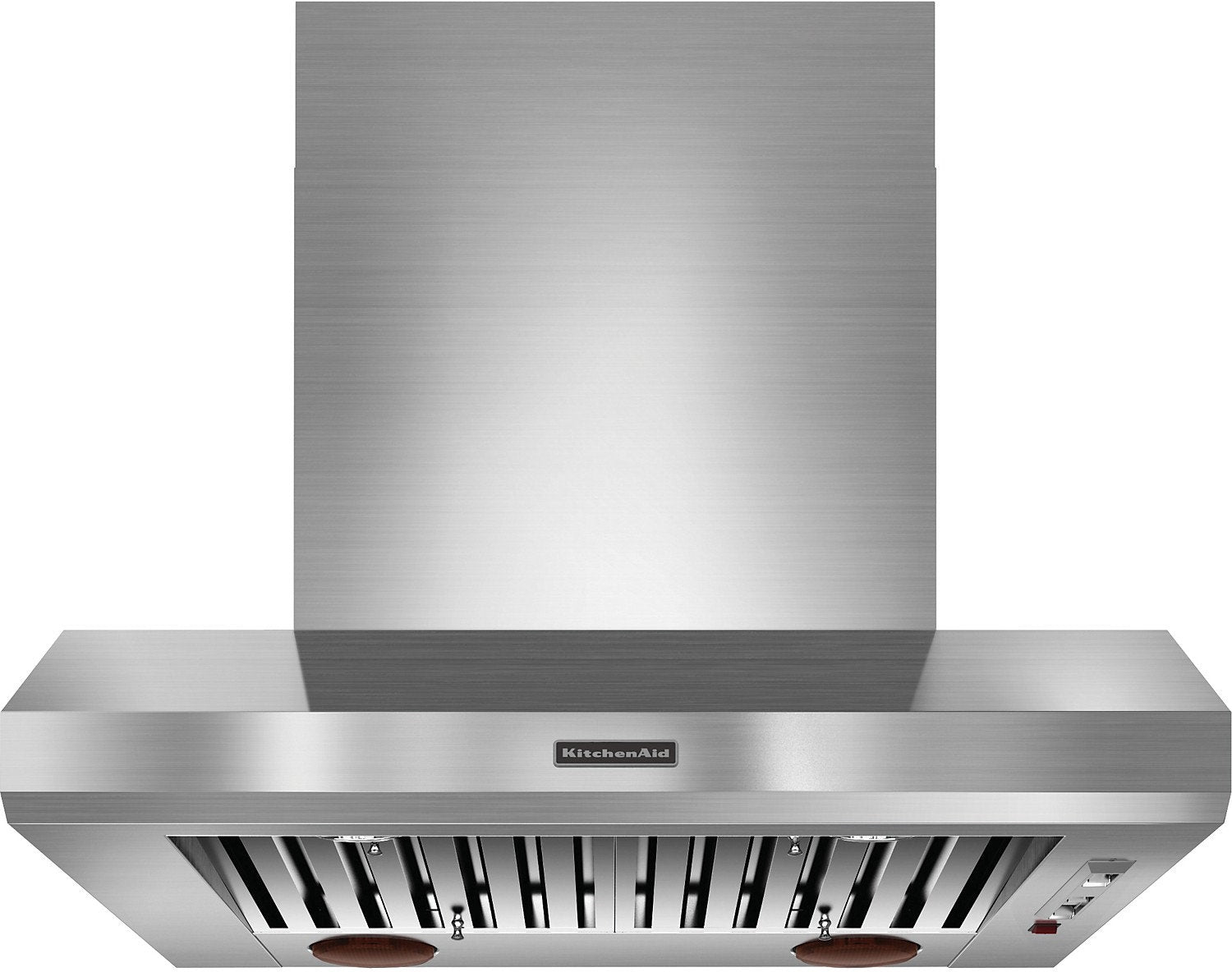

Perfectly complement commercial-grade cooking surfaces with this KitchenAid canopy hood fan. An automatic turn on function combined with a three-speed slide control make this unit extremely easy to use. Halogen lighting brightly illuminates the cooktop surface and dual warming lamps keep food warm until you’re ready to serve it. Plus, the commercial-style baffle filters are dishwasher-safe, making if simple to keep this system clean and performing at its best. Note: Blower must be purchased separately.
Width: 36" (91.4 cm) Height: 38" (96.5 cm) Depth: 20" (50.8 cm)
Width: 39" (99.1 cm) Height: 30" (76.2 cm) Depth: 24" (61.0 cm)
95.00 lbs (43.1 kg)
Key Features:
- 600- or 1,200-CFM Internal or In-Line Blower (Sold Separately).
- Compatible with Cooking Surfaces up to 108,000 BTUs
- Three-Speed Hidden Slide Control
- Automatic Turn On
- Two 50-Watt Halogen Lights
- Two 175-Watt Food Warming Lamps
- Dishwasher Safe Commercial-Style Baffle Filters
600- or 1,200-CFM Internal or In-Line Blower
The single or dual centrifugal blower motor design allows you to choose two levels of ventilation performance. 600 CFM offers a high level of power, while 1,200 CFM is exceptionally powerful, designed to meet the demands of high-heat gas burners and capture even the most persistent cooking odours.
Compatible with Cooking Surfaces up to 108,000 BTUs
This luxury custom hood liner is designed to withstand high heat outputs of up to 108,000 BTUs.
Three-Speed Hidden Slide Control
Maintain an uninterrupted design with hidden controls that make it easy to select fan speed and operate lights.
Automatic Turn On
This feature helps protect your cabinets from damage by automatically turning the vent on when the hood senses the presence of heat.
Two 50-Watt Halogen Lights
Twice as energy efficient and long lasting as incandescent light bulbs, these halogen lights beautifully illuminate the cooking surface from above and provide energy efficient operation with brighter, more natural light.
Two 175-Watt Food Warming Lamps
Leave your prepared food to be kept warm until you're ready to plate and serve under these helpful lamps.
Dishwasher Safe Commercial-Style Baffle Filters
This innovative design makes it easier to provide proper filtration of grease, helping to prevent damage to ceilings and countertops.
Full Features and Specifications
Configuration and Overview:
- Hood Type: Wall Mount
- Venting Type: Exterior
Controls:
- Control Type: Manual
- Control Location: Hidden
- Filters: Dishwasher-Safe Grease Filters
- Task Light: Halogen
Compatible Blowers:
- UXB0600DYS
- UXB1200DYS
- UXI1200DYS
