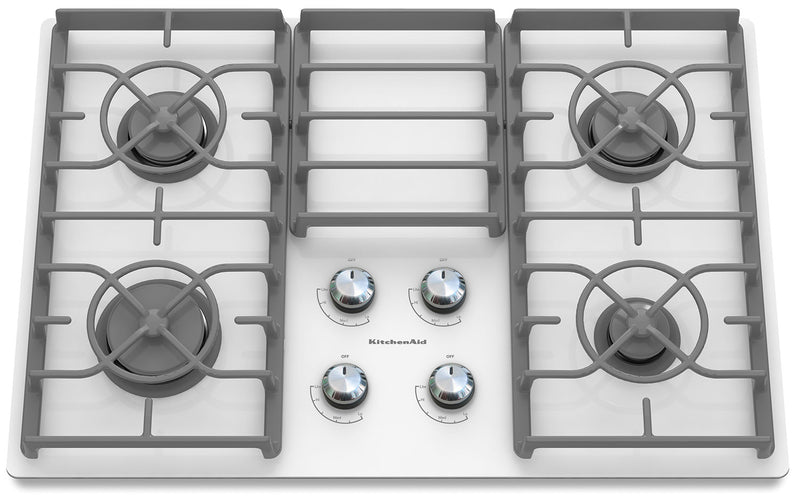

This beautiful KitchenAid Architect Series II glass cooktop is an elegant addition to your kitchen. Heavy-duty cast-iron grates fill the width of the surface, making it easy to slide pots and pans around without having to lift them. The burners range from 6,000 to 17,000 BTU, enabling you to simmer a savoury sauce or fry up a mess of French fries with just the right amount of heat. The cooktop surface easily wipes clean, and its streamlined, industrial appearance enhances your kitchen credibility.
Width: 30" (76.2 cm) Height: 3.38" (8.6 cm) Depth: 21" (53.3 cm)
Width: 35.5" (90.2 cm) Height: 8.5" (21.6 cm) Depth: 24.5" (62.2 cm)
41.00 lbs (18.6 kg)
Key Features
- Gas-on-Glass Surface
- Professional Burner
- Simmer Burner
- Electronic Ignition
- LP Conversion Kit Included
- Full-Width Cast-Iron Grates
Gas-on-Glass Surface
The stylish glass under-surface easily wipes clean.
Professional Burner
Use high-temperature cooking methods such as searing, stir-frying and wok cooking as well as low temperatures suitable for simmering.
Simmer Burner
Ideal for cooking smaller quantities of food, using smaller pots and pans, this burner allows more accurate simmer control at the lowest setting.
Electronic Ignition
Electronic ignition automatically lights burners so no standing pilot light is needed.
Full-Width Cast Iron Grates
These full-width grates enhance the beautiful look of the cooktop and allow for easy movement of cookware around the entire cooking surface.
LP Conversion Kit Included
Convert the cooktop so it can be used with liquefied petroleum gas.
Full Features and Specifications
Configuration and Overview
- Cooktop Type: Standard
- Size: 30"
- Surface Material: Ceramic Glass
- Burner or Element Style: Sealed Gas
- Number of Elements-Burners: 4
- Installs Over Built-In Oven: Yes
- Fuel Type: Gas
Cooktop Features
- Left Front Power: 17,000 BTU
- Left Front Type: Professional Burner
- Left Rear Power: 9,000 BTU
- Right Front Power: 6,000 BTU
- Right Front Type: Simmer
- Right Rear Power: 12,500 BTU
Controls
- Digital Display: No
- Downdraft Vent: No
