Dimensions
Width: 16.5" (41.9 cm)Height: 17.7" (45.0 cm)Depth: 21.9" (55.6 cm)
Shipping Dimensions
Width: 19.3" (49.0 cm)Height: 5.5" (14.0 cm)Depth: 16.5" (41.9 cm)
Weight
22.00 lbs (10.0 kg))
Key Features:
- Recessed Design
- Supports up to 80 Pounds
- Full Range of Motion
- Sleek Cable Management
- Installation Hardware Included
Recessed Design

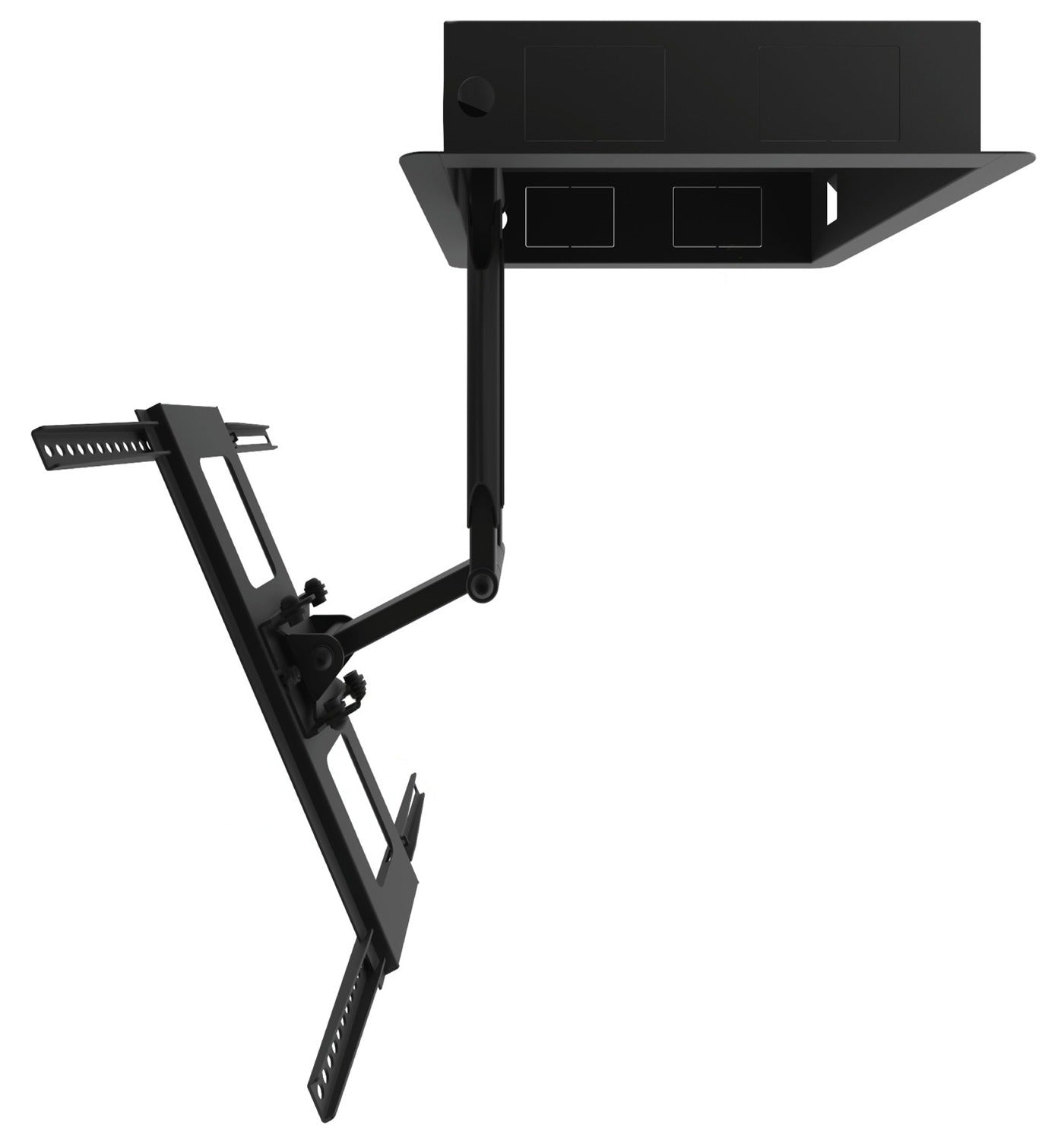

The R300’s in-wall design is made to fit securely between 16-inch stud centers. When fully retracted, its arm assembly allows your TV to sit almost flush with the wall.
Supports up to 80 Pounds

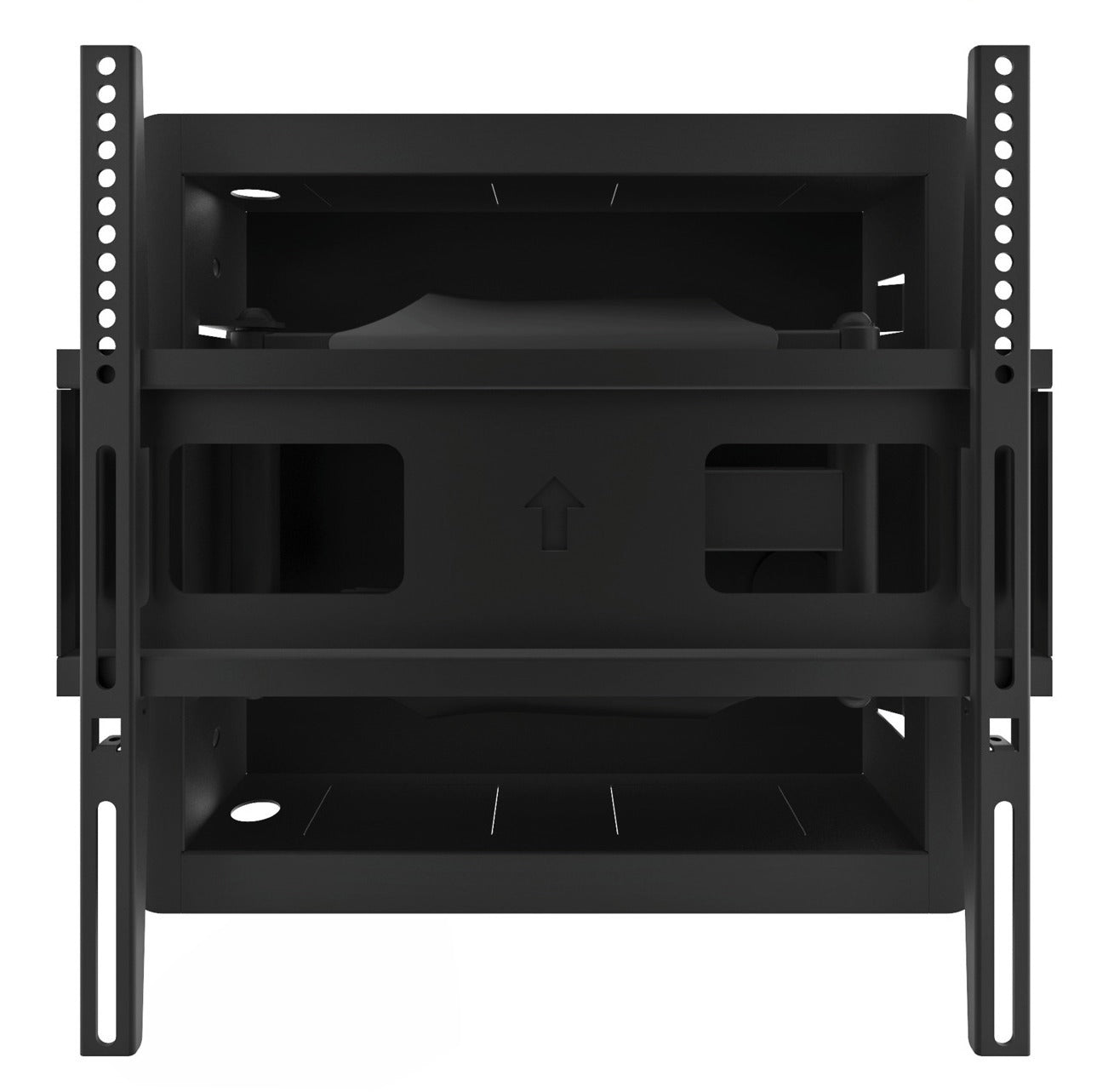

Constructed out of solid steel, the R300 safely supports 32- to 55-inch TVs weighing up to 80 pounds, while its adjustable mounting brackets accommodate VESA sizes between 100x100 and 400x400.
Full Range of Motion

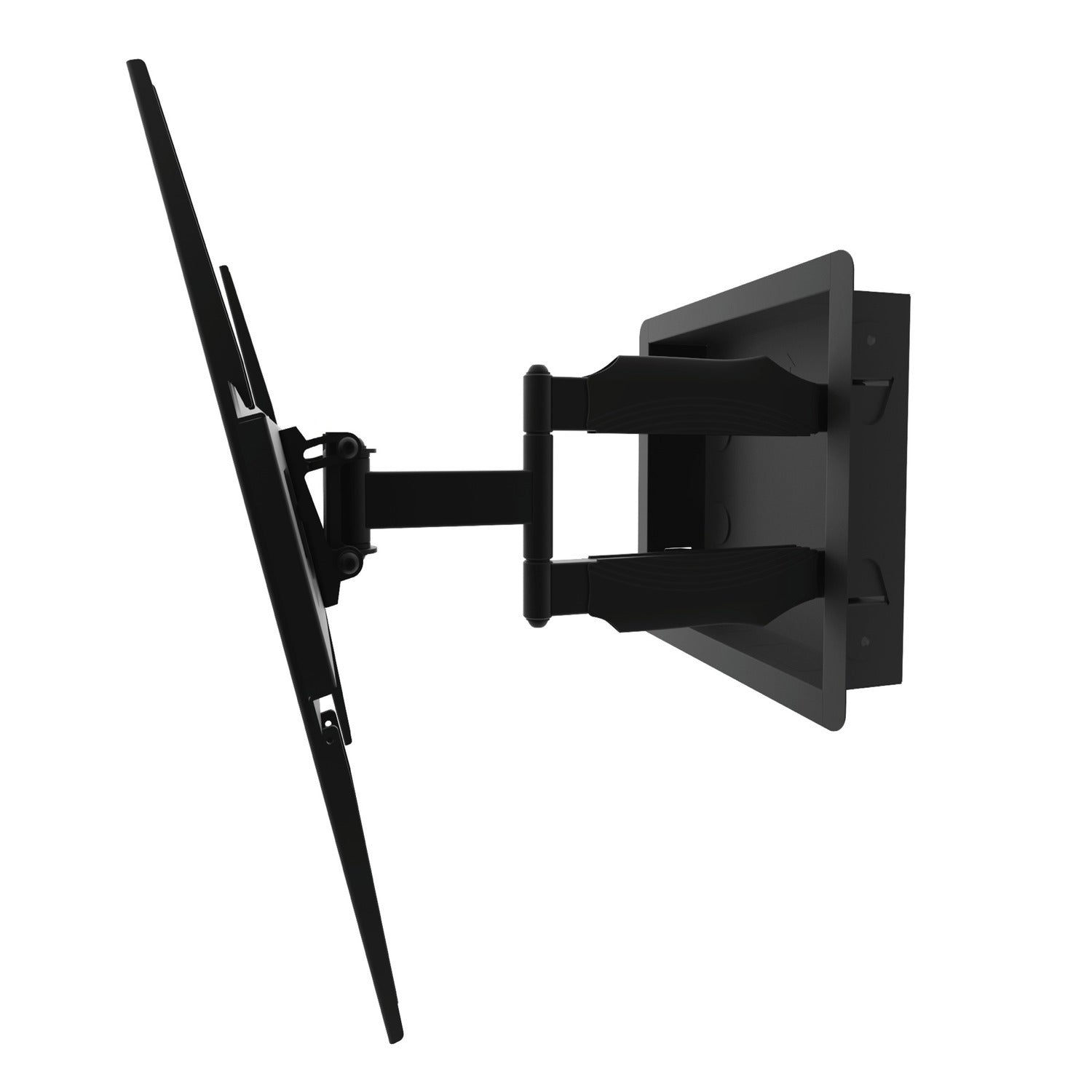

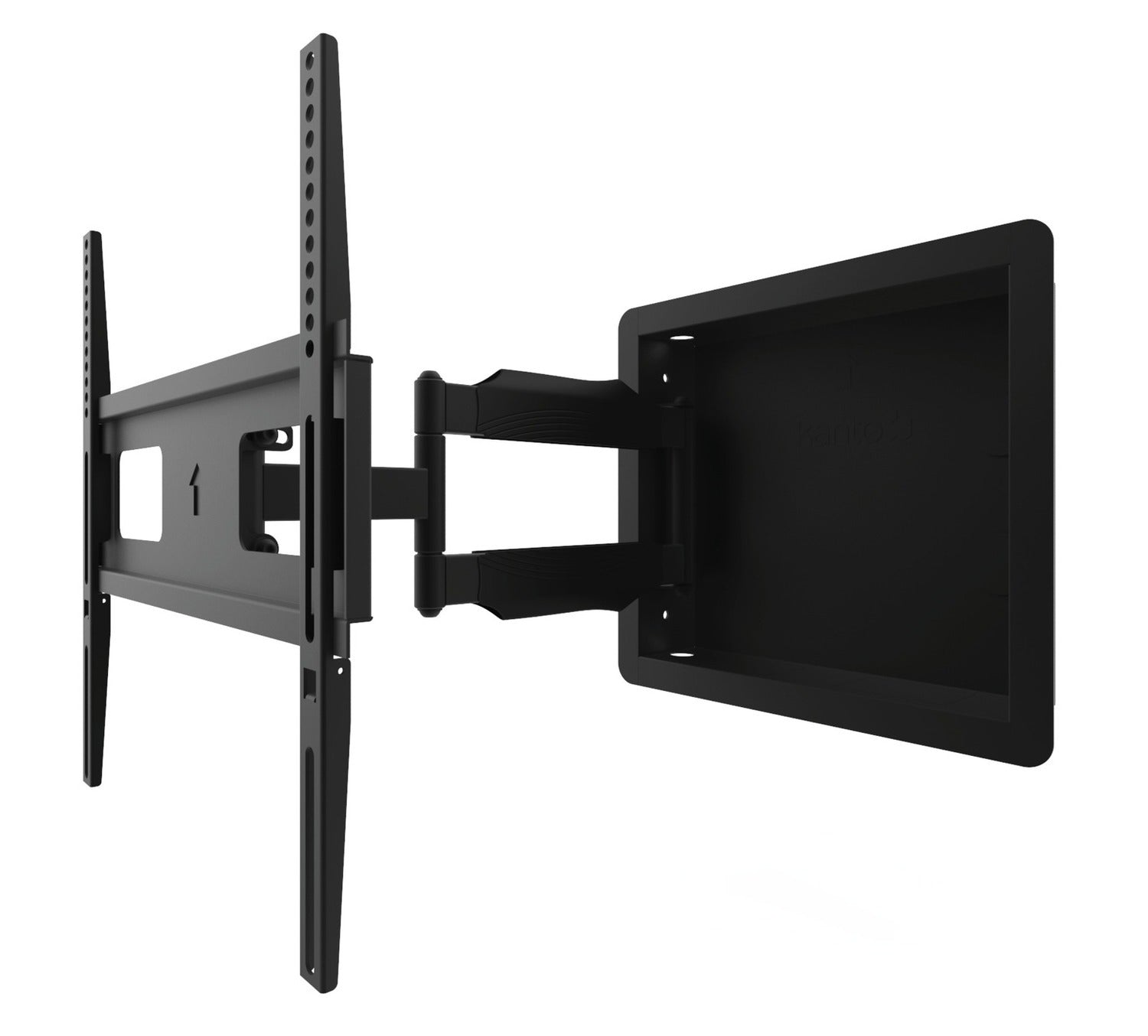

Use the R300’s articulating arm to ensure you always have the perfect viewing angle. Extend it out 18.5 inches to provide ample room to tilt and swivel your TV.
Sleek Cable Management
Keep your viewing area tidy by securing your cables to the mounting arm with the provided clips.
Installation Hardware Included
Because every installation is unique, the R300 is carefully packaged with all the lag bolts, washers and spacers that you could need. An online installation video is also provided to help you along the way.
Full Features and Specifications:
- Fits most flat panel TVs from 32" to 55"
- Supports TVs up to 80 lb. (36 kg)
- Fits between 16" wood stud centres
- Accommodates VESA sizes 100x100 to 400x400
- Accessible tilt mechanism provides a +10° to -5° tilt angle
- 90 degrees of swivel in either direction, dependent on screen size
- Sits 1.25" (3.2 cm) from the wall
- Extends up to 18.5" (46.9 cm) from the wall
- Integrated cable management system
- Solid steel construction with durable powder-coated finish
- Includes installation manual and all necessary mounting hardware
- Product weight: 20.5 lb. (9.3 kg)
